* Resolution up to 18 bits plus sign bit and over-range bit
* Accuracy independent of input source impedances
* Accurate on-chip voltage reference
* Tempco as low as 10 ppm/°C guaranteed
* Chip select - power down mode
* High input impedance of 1012 Ω
ALD500RA
Advanced Linear Devices
90.29 KB
Precision integrating analog processor.
ADVANCED LINEAR DEVICES, INC.
ALD500RAU/ALD500RA/ALD500R

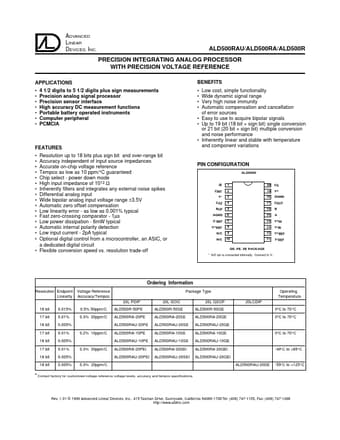

PRECISION INTEGRATING ANALOG PROCESSOR WITH PRECISION VOLTAGE REFERENCE
