AM386SX Embedded Microprocessors

The Am386®SX/SXL/SXLV microprocessors are lowcost, high-performance CPUs for embedded applications. Embedded customers benefit from using the Am386 microprocessor in a number of ways. The Am386SX/SXL/SXLV microprocessors provide embedded customers access to very inexpensive processors and the highes.

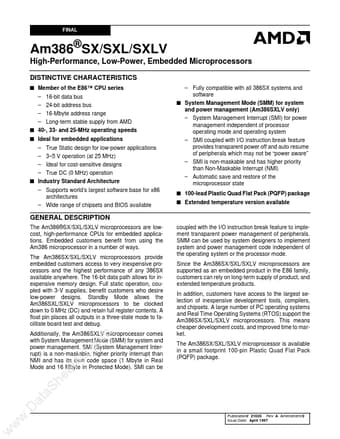

www.DataSheet4U.com FINAL Am386®SX/SXL/SXLV High-Performance, Low-Power, Embedded Microprocessors DISTINCTIVE CHARACTERISTICS s Member of the E86™ CPU series 16-bit data bus 24-bit address bus 16-Mbyte address range Long-term stable supply from AMD s 40-, 33- and 25-MHz operating speeds s Ideal for embedded applications True Static design for low-power applications 3 5 V operation (at 25 MHz) Ideal for cost-sensitive.

AM386SX Features

* System Management Interrupt (SMI) and I/O instruction break. SMI

* System Management Interrupt SMI is implemented by using special bus interface pins. This interrupt method can be used to perform system management functions such as power management independent of processor operating mode (Rea
