AM386SXLV - Embedded Microprocessors

The Am386®SX/SXL/SXLV microprocessors are lowcost, high-performance CPUs for embedded applications.

Embedded customers benefit from using the Am386 microprocessor in a number of ways.

The Am386SX/SXL/SXLV microprocessors provide embedded customers access to very inexpensive processors and the highes

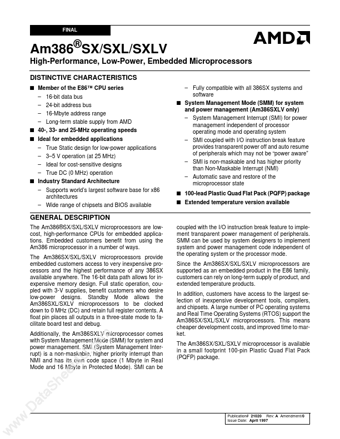

www.DataSheet4U.com FINAL Am386®SX/SXL/SXLV High-Performance, Low-Power, Embedded Microprocessors DISTINCTIVE CHARACTERISTICS s Member of the E86™ CPU series 16-bit data bus 24-bit address bus 16-Mbyte address range Long-term stable supply from AMD s 40-, 33- and 25-MHz operating speeds s Ideal for embedded applications True Static design for low-power applications 3 5 V operation (at 25 MHz) Ideal for cost-sensitive
