AM3829P Datasheet - Analog Power

AM3829P P-Channel MOSFET

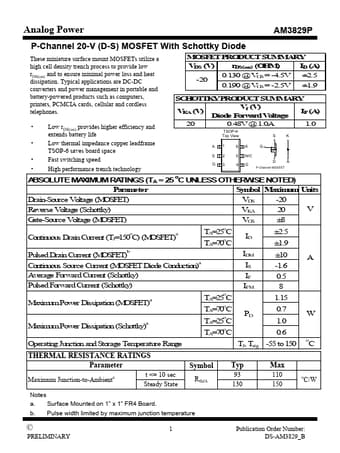

Analog Power AM3829P P-Channel 20-V (D-S) MOSFET With Schottky Diode These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (OHM) ID (A) -20 0.130 @VGS = -4.5V ±2.5 0.190 @VGS = -2.5V ±1.9 battery-powered products such as computers, printers, PCMCIA cards, cellular a.

AM3829P Datasheet (276.25 KB)
