AM3810N, MOSFET

Analog Power AM3810N Dual N-Channel 20-V (D-S) MOSFET Key .

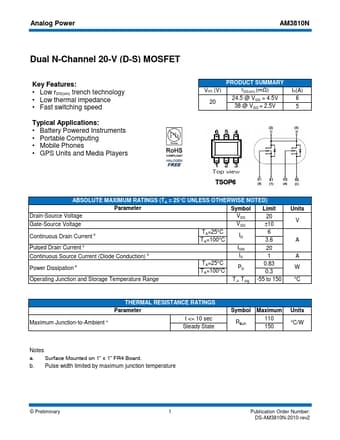

datasheet Preview Page 1 from Datasheet4u.com

AM3810N_AnalogPower.pdf

AM3810N Datasheet Preview — Preview of AM3810N PDF

Datasheet Details

Part number:

AM3810N

Manufacturer:

Analog Power

File Size:

546.86 KB

Description:

MOSFET

Features

* Low rDS(on) trench technology
* Low thermal impedance

Applications

* Battery Powered Instruments
* Portable Computing
* Mobile Phones
* GPS Units and Media Players PRODUCT SUMMARY rDS(on) (mΩ) 24.5 @ VGS = 4.5V 38 @ VGS = 2.5V VDS (V) 20 ID(A) 6 5 TSOP6 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol
