PALCE16V8H-25, PALCE16V8H-15 Datasheet - Advanced Micro Devices

PALCE16V8H-25 EE CMOS Universal Programmable Array Logic

The PALCE16V8 is an advanced PAL® device built with low-power, high-speed, electrically-erasable CMOS technology. It is functionally compatible with all 20-pin GAL devices. The macrocells provide a universal device architecture. ThePALCE16V8 will directly replace the PAL16R8 and PAL1OH8 series devic.

- PALCE16V8H-15/25 EE CMOS Universal Programmable Array Logic Advanced Micro Devices DISTINCTIVE CHARACTERISTICS Pin, function and fuse-map compatible with all 20-pln GAL® devices Electrically erasable CMOS technology provides reconfigurable logic and full testability High speed CMOS technology - 15-ns propagation delay for "-15" version - 25-ns propagation delay for "-25" version Direct plug-in replacement for the PAL16R8 series and most of the PAL1OH8 .

PALCE16V8H-15-AdvancedMicroDevices.pdf

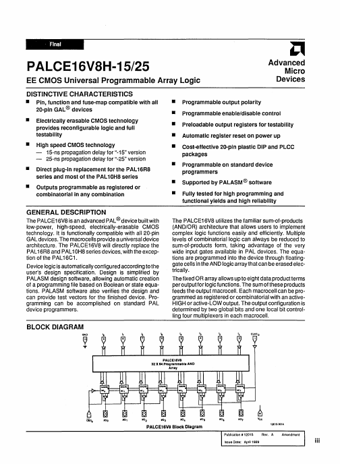

PALCE16V8H-25 Datasheet Preview — This datasheet PDF includes multiple part numbers: PALCE16V8H-25, PALCE16V8H-15. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PALCE16V8H-25, PALCE16V8H-15

Manufacturer:

Advanced Micro Devices

File Size:

1.31 MB

Description:

Ee cmos universal programmable array logic.

Note:

This datasheet PDF includes multiple part numbers: PALCE16V8H-25, PALCE16V8H-15.
Please refer to the document for exact specifications by model.
