PALCE22V10 24-Pin EE CMOS (Zero Power) Versatile PAL Device

The PALCE22V10 provides user-programmable logic for replacing conventional SSI/MSI gates and ﬂip-ﬂops at a reduced chip count. The PALCE22V10Z is an advanced PAL® device built with zero-power, high-speed, electricallyerasable CMOS technology. It provides user-programmable logic for replacing convent.

PALCE22V10 COM'L: H-5/7/10/15/25,Q-10/15/25 IND: H-10/15/20/25 PALCE22V10Z COM'L: -25 IND: -15/25 PALCE22V10 and PALCE22V10Z Families 24-Pin EE CMOS (Zero Power) Versatile PAL Device DISTINCTIVE CHARACTERISTICS x As fast as 5-ns propagation delay and 142.8 MHz fMAX (external) x Low-power EE CMOS x 10 macrocells programmable as registered or combinatorial, and active high or active low to match application needs x Varied product term distribution allows up to 16 product terms per output for com.

PALCE22V10 Features

* of the PALCE22V10. In addition, the PALCE22V10Z has zero standby power and unused product term disable. Product terms with all connections opened assume the logical HIGH state; product terms connected to both true and complement of any single input assume the logical LOW state. The PALCE22V10 has 12

PALCE22V10_LatticeSemiconductor.pdf

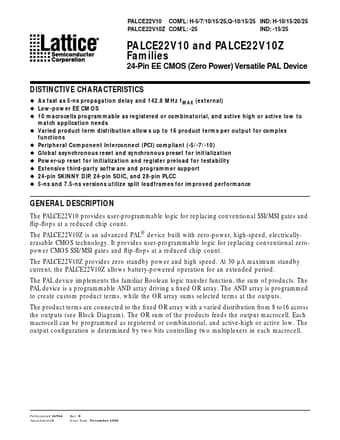

PALCE22V10 Datasheet Preview — Preview of PALCE22V10 PDF

Datasheet Details

Part number:

PALCE22V10

Manufacturer:

Lattice Semiconductor

File Size:

691.86 KB

Description:

24-pin ee cmos (zero power) versatile pal device.
