PALCE16V8Z - EE CMOS 20-Pin Universal Programmable Array Logic

Product Overview

Lattice Semiconductor

Datasheet Details

Part number	PALCE16V8Z
Manufacturer	Lattice Semiconductor
File Size	634.90 KB
Description	EE CMOS 20-Pin Universal Programmable Array Logic
Datasheet	PALCE16V8Z Datasheet
Note	This datasheet PDF includes multiple part numbers: PALCE16V8Z, PALCE16V8. Please refer to the document for exact specifications by model.

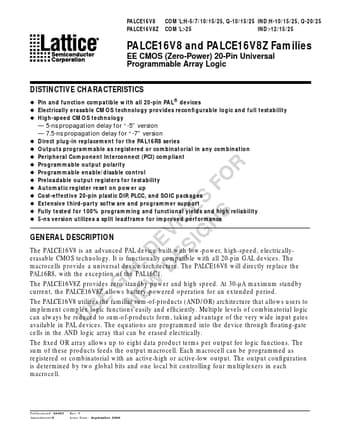

Additional preview pages of the PALCE16V8Z datasheet.

Product details

Description

D S The PALCE16V8 is an advanced PAL device built with low-power, high-speed, electrically- erasable CMOS technology.It is functionally compatible with all 20-pin GAL devices.The E macrocells provide a universal device architecture.The PALCE16V8 will directly replace the L D PAL16R8, with the exception of the PAL16C1. A The PALCE16V8Z provides zero standby power and high speed.At 30-µA maximum standby G W current, the PALCE16V8Z allows battery-powered operation for an extended period.E E Th

Features

of the PALCE16V8. In addition, the PALCE16V8Z A has zero standby power and an unused product term disable feature for reduced power G W consumption. It has eight independently conﬁgurable macrocells (MC0-MC7). Each macrocell can E be conﬁgured as registered output, combinatorial output, combinatorial I/O or dedicated input. E The programming matrix implements a programmable AND logic array, which drives a ﬁxed OR S N logic array. Buffers for device inputs have complementary outputs to provide us.
