AMS2026 Datasheet - Advanced Monolithic Systems

DUAL POWER DISTRIBUTION SWITCH

AMS2026 Features

* 110mΩ Typ. (5V Input) High Side MOSFET Switch

* Short Circuit Protection

* Overcurrent Protection

* Thermal Protection

* Enable Input Compatible With 3V and 5V Logic

* Controlled Rise and Fall Times Limit Current Surges and Minimize EMI

* Und

AMS2026 General Description

The AMS2026 is a dual power distribution switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. The high-side switch is a 110mΩ N-channel MOSFET. The switch is controlled by a logic enable input compatible with 3V and 5V logic and is available .

AMS2026 Datasheet (52.94 KB)

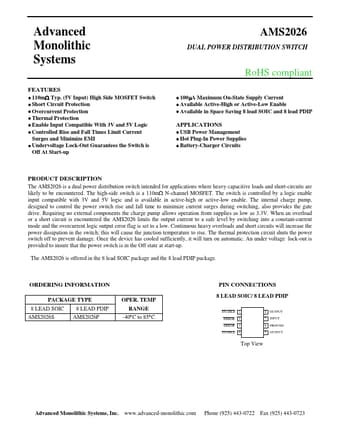

AMS2026 Datasheet Preview — Preview of AMS2026 PDF

Datasheet Details

Part number:

AMS2026

Manufacturer:

Advanced Monolithic Systems

File Size:

52.94 KB

Description:

Dual power distribution switch.
