AMS22U - Non-Contacting Analog Rotary Position Sensor

AMS22U Description

*RoHS COMPLIANT .

AMS22U Features

* Non-contacting magnetic technology
* Highly resistant to vibration/shock
* Highly resistant to fluid/dust ingress
* Programmable at factory for zero position

AMS22U Applications

* Highly repeatable
* Dual ball bearing
* RoHS compliant
* AMS22U Non-Contacting Analog Rotary Position Sensor Electrical Characteristics1 (@ 25 °C) VDD Supply Voltage 5 V ± 10 % Supply Current 2 For Low Speed Processing (Code L) 10 mA max. For High Speed Processing (Code H) 20 mA

📥 Download Datasheet

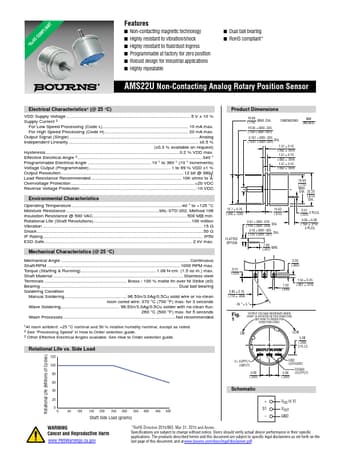

Preview of AMS22U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS22U
Manufacturer
Bourns Electronic Solutions
File Size
168.75 KB
Datasheet
AMS22U-BournsElectronicSolutions.pdf
Description
Non-Contacting Analog Rotary Position Sensor
