AMS222

COMPLIMENTARY OUTPUT OSCILLATOR/CLOCK GENERATOR

AMS222 Features

* AMS222 COMPLIMENTARY OUTPUT OSCILLATOR/CLOCK GENERATOR RoHS compliant APPLICATIONS

* Switch-Mode Power Supplies

* Servers

* Printers

* Embedded Microcontrollers

* Industrial Controls

* Automotive Applications

* Toys

* Low-Cost, Oscill

AMS222 General Description

The AMS222 is a low-cost, oscillator intended to be used as an external clock for low-frequency applications. The device consists of a resistor-programmed oscillator with complementary output stage. An external resistor allows for output frequency range to be adjusted from 10kHz to 6MHz. The complim.

AMS222 Datasheet (737.29 KB)

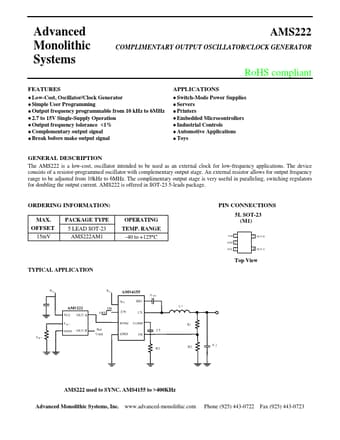

Preview of AMS222 PDF

Datasheet Details

Part number:

AMS222

Manufacturer:

Advanced Monolithic Systems

File Size:

737.29 KB

Description:

Complimentary output oscillator/clock generator.
