AMS385-1.2, AMS385-12 - MICROPOWER VOLTAGE REFERENCE DIODE

Advanced Monolithic Systems

The AMS385-1.2 by Advanced Monolithic Systems is a MICROPOWER VOLTAGE REFERENCE DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	AMS385-1.2, AMS385-12
Manufacturer	Advanced Monolithic Systems
File Size	171.57 KB
Description	MICROPOWER VOLTAGE REFERENCE DIODE
Datasheet	AMS385-12_AdvancedMonolithicSystems.pdf
Note	This datasheet PDF includes multiple part numbers: AMS385-1.2, AMS385-12. Please refer to the document for exact specifications by model.

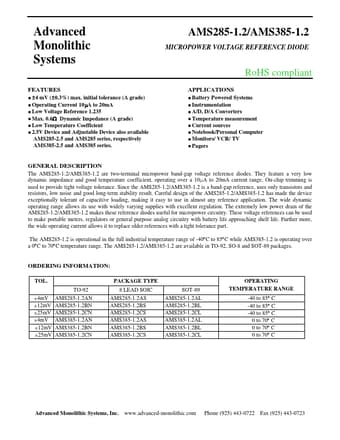

Additional preview pages of the AMS385-1.2 datasheet.

The AMS285-1.2/AMS385-1.2 are two-terminal micropower band-gap voltage reference diodes.

±4 mV (±0.3%) max. initial tolerance (A grade).
Operating Current 10µA to 20mA.
Low Voltage Reference 1.235.
Max. 0.6Ω Dynamic Impedance (A grade).
Low Temperature Coefficient.
2.5V Device and Adjustable Device also available AMS285-2.5 and AMS285 series, respectively AMS385-2.5 and AMS385 series. AMS285-1.2/AMS385-1.2.
