AMS385-2.5, AMS385-25 MICROPOWER VOLTAGE REFERENCE DIODE

AMS385-2.5 Description

Advanced Monolithic Systems .
The AMS285-2.

AMS385-2.5 Features

* ±20 mV (±0.8%) max. initial tolerance (A grade)
* Operating Current 20µA to 20mA
* Low Voltage Reference 2.5V
* Max. 0.6Ω Dynamic Impedance (A grade)
* Low Temperature Coefficient
* 1.2V Device and Adjustable Device also available AMS285-1.2 and AMS2

AMS385-2.5 Applications

* Battery Powered Systems
* Instrumentation
* A/D, D/A Converters
* Temperature measurement
* Current sources
* Notebook/Personal Computer
* Monitors/ VCR/ TV

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AMS385-2.5, AMS385-25. Please refer to the document for exact specifications by model.

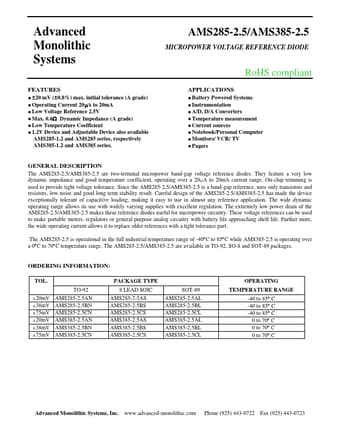

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS385-2.5, AMS385-25
Manufacturer
Advanced Monolithic Systems
File Size
166.16 KB
Datasheet
AMS385-25_AdvancedMonolithicSystems.pdf
Description
MICROPOWER VOLTAGE REFERENCE DIODE
Note
This datasheet PDF includes multiple part numbers: AMS385-2.5, AMS385-25.
Please refer to the document for exact specifications by model.
