AMS3120 Datasheet - AMS

2A Fast Transient Linear Regulator

AMS3120 Features

* VIN range: 1.5

* 7V

* Fixed and Adjustable output voltage as low as 0.6V

* 2A maximum output current

* 550mV typical dropout voltage at 2A

* Low self noise

* Optional Power Good (PG) output

* Enable (EN) pin for LDO on/off

* 1

AMS3120 General Description

The AMS3120 is a high performance linear regulator with very low dropout voltage and excellent transient response. It is designed to operate with wide input voltage range of 1.5 * 7Volts making it ideal for two step conversion while maintaining high efficiency for many power sensitive applic.

AMS3120 Datasheet (400.97 KB)

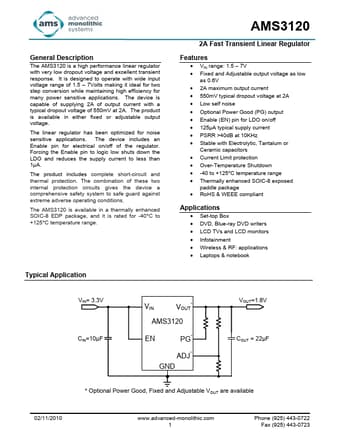

AMS3120 Datasheet Preview — Preview of AMS3120 PDF

Datasheet Details

Part number:

AMS3120

Manufacturer:

AMS

File Size:

400.97 KB

Description:

2a fast transient linear regulator.
