AMS3132M, AMS3132 - 3A Fast Transient Linear Regulator

AMS3132M Description

General .
The AMS3132 is a high performance linear regulator with very low dropout voltage and excellent transient response.

AMS3132M Features

* VIN range: 1.5
* 7V
* Fixed and Adjustable output voltage as low as 0.6V
* 3A maximum output current
* 700mV typical dropout voltage at 3A
* Low self noise
* Optional Power Good (PG) output
* Optional Enable (EN) pin for LDO on/off

AMS3132M Applications

* The device is capable of supplying 3A of output current with a typical dropout voltage of 700mV at 3A. The product is available in either fixed or adjustable output voltage. The linear regulator has been optimized for noise sensitive applications. The device includes an optional enable pin for elec

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AMS3132M, AMS3132. Please refer to the document for exact specifications by model.

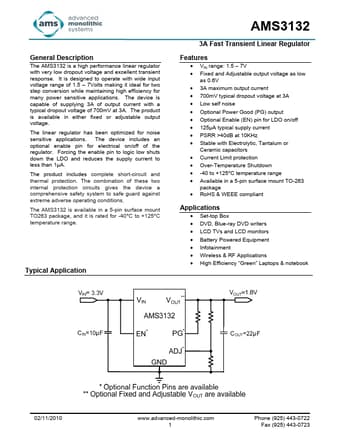

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS3132M, AMS3132
Manufacturer
AMS
File Size
431.17 KB
Datasheet
AMS3132-AMS.pdf
Description
3A Fast Transient Linear Regulator
Note
This datasheet PDF includes multiple part numbers: AMS3132M, AMS3132.
Please refer to the document for exact specifications by model.
