AMS3131 - 3A Fast Transient Linear Regulator

AMS3131 Description

General .
The AMS3131 is a high performance linear regulator with very low dropout voltage and excellent transient response.

AMS3131 Features

* VIN range: 1.5
* 7V
* Fixed output voltage as low as 0.6V
* 3A maximum output current
* 700mV typical dropout voltage at 3A
* Low self noise
* 125µA typical supply current
* PSRR >40dB at 10KHz
* Stable with Electrolytic, Tant

AMS3131 Applications

* The device is capable of supplying 3A of output current with a typical dropout voltage of 700mV at 3A. The product is available only as a fixed output voltage option. The product includes complete short-circuit and thermal protection. The combination of these two internal protection circuits gives

📥 Download Datasheet

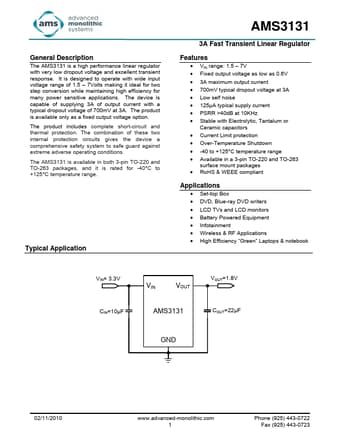

Preview of AMS3131 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS3131
Manufacturer
AMS
File Size
310.43 KB
Datasheet
AMS3131-AMS.pdf
Description
3A Fast Transient Linear Regulator
