AMS3101

150mA LOW DROPOUT VOLTAGE REGULATOR

Advanced Monolithic Systems

AMS3101 Features

* 0.6V to 6V in 100mV increments Voltages Available

* Active High On/Off Control

* Output Current of 150mA

* Quiescent Current of

AMS3101 General Description

The AMS3101 is a 150mA low dropout fixed voltage regulator, featuring an internal electronic switch controlled by TTL or CMOS logic levels. When the Enable pin is pulled to a logic high level, the device is in the ON state. Designed specifically for battery powered applications where low quiescent c.

AMS3101 Datasheet (347.31 KB)

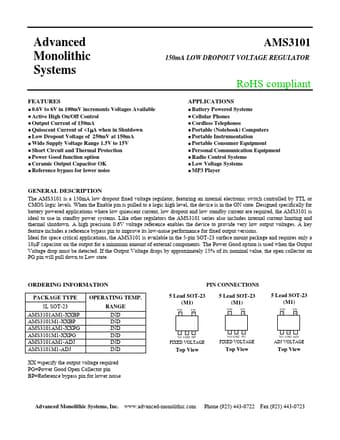

AMS3101 Datasheet Preview — Preview of AMS3101 PDF

Datasheet Details

Part number:

AMS3101

Manufacturer:

Advanced Monolithic Systems

File Size:

347.31 KB

Description:

150ma low dropout voltage regulator.
