AMS3121 Datasheet - Advanced Monolithic Systems

2A Fast Transient Linear Regulator

AMS3121 Features

* VIN range: 1.5

* 7V

* Fixed output voltage as low as 0.6V

* 2A maximum output current

* 550mV typical dropout voltage at 2A

* Low self noise

* 125µA typical supply current

* PSRR >40dB at 10KHz

* Stable with Electrolytic, Tant

AMS3121 General Description

The AMS3121 is a high performance linear regulator with very low dropout voltage and excellent transient response. It is designed to operate with wide input voltage range of 1.5 * 7Volts making it ideal for two step conversion while maintaining high efficiency for many power sensitive applic.

AMS3121 Datasheet (319.08 KB)

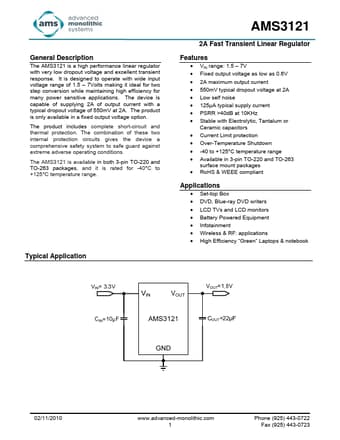

AMS3121 Datasheet Preview — Preview of AMS3121 PDF

Datasheet Details

Part number:

AMS3121

Manufacturer:

Advanced Monolithic Systems

File Size:

319.08 KB

Description:

2a fast transient linear regulator.
