Datasheet Details
- Part number
- 40N03GP
- Manufacturer
- Advanced Power Electronics
- File Size
- 91.41 KB
- Datasheet
- 40N03GP-AdvancedPowerElectronics.pdf
- Description
- N-channel Enhancement-mode Power MOSFET
40N03GP Description

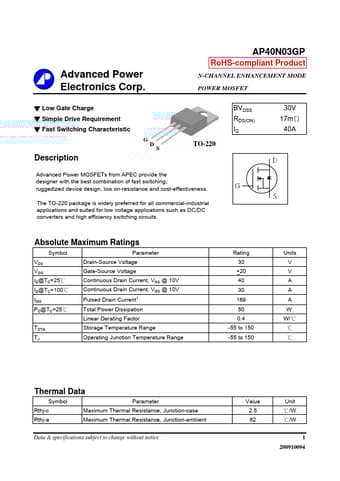

Advanced Power Electronics Corp.AP40N03GP RoHS-compliant Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge ▼ Simple Drive Requireme.
G D S
TO-220
Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-re.
40N03GP Applications
* and suited for low voltage applications such as DC/DC converters and high efficiency switching circuits. BVDSS RDS(ON) ID
G
30V 17mΩ
40A
D
S
Absolute Maximum Ratings
Symbol
Parameter
VDS VGS ID@TC=25℃ ID@TC=100℃
IDM PD@TC=25℃
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current,
