AP2327GN-HF, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP2327GN-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Small Package Outline ▼ Surface Mount Device ▼ RoHS Co.
Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching,low on-resistance and cost-effectiveness.

AP2327GN-HF_AdvancedPowerElectronics.pdf

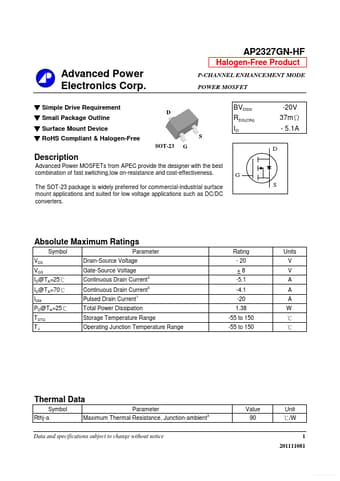

AP2327GN-HF Datasheet Preview — Preview of AP2327GN-HF PDF

Datasheet Details

Part number:

AP2327GN-HF

Manufacturer:

Advanced Power Electronics

File Size:

77.14 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* and suited for low voltage applications such as DC/DC converters. G S Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current 1 3 3 Rating - 20 +8 -5.1 -4.1 -20 1.38 -55 to 1
