AP2328GN-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP2328GN-HF Description

Advanced Power Electronics Corp.AP2328GN-HF Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive ▼ Small Outli.
AP2328 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching p.

AP2328GN-HF Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. G 30V 60mΩ 4A D S Absolute Maximum Ratings@Tj=25oC(unless otherwi

📥 Download Datasheet

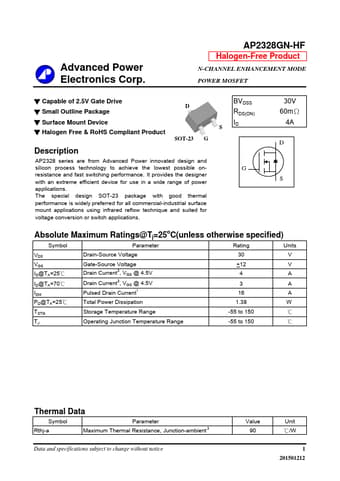

Preview of AP2328GN-HF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP2328GN-HF
Manufacturer
Advanced Power Electronics
File Size
94.42 KB
Datasheet
AP2328GN-HF_AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
