APTGT150A120 - IGBT

Advanced Power Technology

📥 Download Datasheet

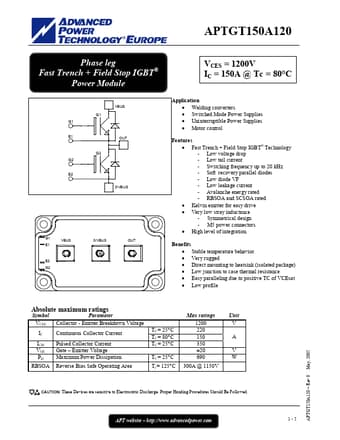

APTGT150A120 Datasheet Preview — Preview of APTGT150A120 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	APTGT150A120
Manufacturer	Advanced Power Technology
File Size	265.77 KB
Description	IGBT
Datasheet	APTGT150A120-AdvancedPowerTechnology.pdf

APTGT150A120 Product details

Features

Fast Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Very low stray inductance - Symmetrical design - M5 power connectors.
High level of integration Benefits.
Stable temperature behavior.
Very rugged.
Direct mounting to heat.
