* Trench + Field Stop IGBT Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - RBSOA and SCSOA rated
* Kelvin emitter for easy drive
* High level of integration
* M5
APTGT150A120D1G Datasheet (177.54 KB)
APTGT150A120D1G
177.54 KB
Igbt.

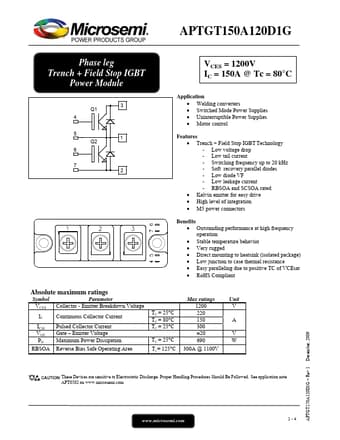

APTGT150A120D1G Phase leg Trench + Field Stop IGBT Power Module Q1 4 5 Q2 6 7 3 VCES = 1200V IC = 150A @ Tc = 80°C Application Welding conv.
