APTGT150A170D1 Datasheet - Advanced Power Technology

APTGT150A170D1, IGBT

APTGT150A170D1 Trench IGBT Power Module Phase leg ® VCES = 1700V IC = 150A @ Tc = 80°C Application * Welding converters * Switched M.

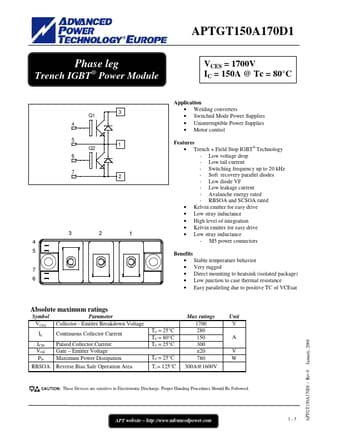

datasheet Preview Page 1 from Datasheet4u.com

APTGT150A170D1-AdvancedPowerTechnology.pdf

APTGT150A170D1 Datasheet Preview — Preview of APTGT150A170D1 PDF

Datasheet Details

Part number:

APTGT150A170D1

Manufacturer:

Advanced Power Technology

File Size:

186.05 KB

Description:

IGBT

Features

* Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated
* Kelvin emitter for easy drive
* Low stray in
