BFR91G Datasheet, TRANSISTORS, Advanced Power Technology

BFR91G Features

• Transistors
• High Current-Gain
    – Bandwidth Product, fT = 5 GHz (typ) @ IC = 30 mA
• Low Noise Figure
    – NF = 1.9 dB (typ) @ f = 0.5 GHz, 2.5 dB (typ)

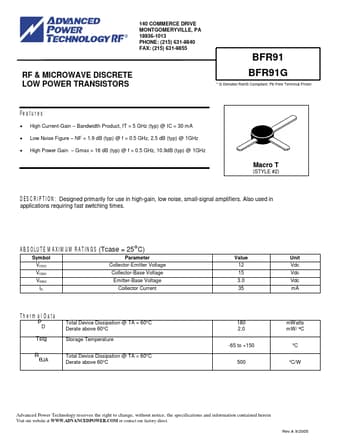

PDF File Details

Part number:

BFR91G

Manufacturer:

Advanced Power Technology

File Size:

118.26kb

Download:

📄 Datasheet

Description:

Rf & microwave discrete low power transistors. Designed primarily for use in high-gain, low noise, small-signal amplifiers. Also used in applications requiring fast switching time

BFR91G Application

• Applications requiring fast switching times. ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C) Symbol Parameter VCEO Collector-Emitter Voltage VCBO Col
