BFR92A - NPN Transistor

Datasheet Summary

Description

NF = 1.3 dB TYP.

High Power Gain ︱S21e︱2 = 11.5 dB TYP.

Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low noise amplifi

📥 Download Datasheet

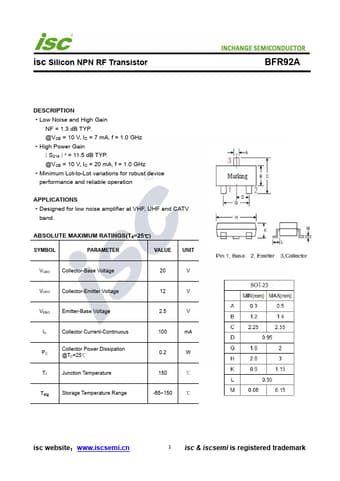

Datasheet preview – BFR92A

Datasheet Details

Part number BFR92A
Manufacturer INCHANGE
File Size 195.62 KB
Description NPN Transistor
Datasheet download datasheet BFR92A Datasheet
Additional preview pages of the BFR92A datasheet.

📁 Similar Datasheet

  • BFR92A - NPN 5GHz wideband transistor (NXP)
  • BFR92A - Silicon NPN Planar RF Transistor (Vishay Telefunken)
  • BFR92A - NPN WIDEBAND TRANSISTOR (Diodes Incorporated)
  • BFR92A - SMALL SIGNAL NPN RF TRANSISTOR (TT)
  • BFR92ALT1 - RF TRANSISTORS NPN SILICON (Motorola Inc)
  • BFR92AR - Silicon NPN Planar RF Transistor (Vishay Telefunken)
  • BFR92AT - NPN 5 GHz wideband transistor (NXP)
  • BFR92AW - NPN 5 GHz wideband transistor (NXP)
  • BFR92AW - Silicon NPN Planar RF Transistor (Vishay Telefunken)
  • BFR92 - NPN 5 GHz wideband transistor (NXP)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN RF Transistor INCHANGE Semiconductor BFR92A DESCRIPTION ·Low Noise and High Gain NF = 1.3 dB TYP. @VCE = 10 V, IC = 7 mA, f = 1.0 GHz ·High Power Gain ︱S21e︱2 = 11.5 dB TYP. @VCE = 10 V, IC = 20 mA, f = 1.0 GHz ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for low noise amplifier at VHF, UHF and CATV band. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 20 V VCEO Collector-Emitter Voltage 12 V VEBO Emitter-Base Voltage 2.5 V IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature 100 mA 0.2 W 150 ℃ Tstg Storage Temperature Range -65~150 ℃ isc website：www.iscsemi.
