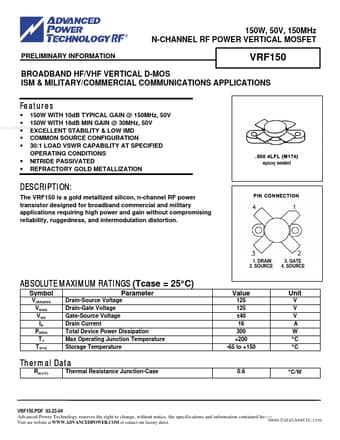

VRF150 Datasheet (Advanced Power Technology) - N-CHANNEL RF POWER VERTICAL MOSFET

VRF150, N-CHANNEL RF POWER VERTICAL MOSFET

The VRF150 is a gold metallized silicon, n-channel RF power transistor designed for broadband commercial and military applications requiring high power and gain without compromising reliability, ruggedness, and intermodulation distortion.

DRAIN 2.

SOURCE 3.

GATE 4.

SOURCE ABSOLUTE MAXIMUM RAT

VRF150 Features

* 150W WITH 10dB TYPICAL GAIN @ 150MHz, 50V

* 150W WITH 18dB MIN GAIN @ 30MHz, 50V www.DataSheet4U.com

* EXCELLENT STABILITY & LOW IMD

* COMMON SOURCE CONFIGURATION

* 30:1 LOAD VSWR CAPABILITY AT SPECIFIED OPERATING CONDITIONS

* NITRIDE PASSIVATED
