VRF141MP, VRF141 - 175MHz RF Power MOSFET

Microchip

📥 Download Datasheet

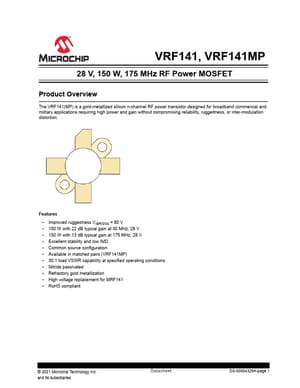

VRF141MP Datasheet Preview — This datasheet PDF includes multiple part numbers: VRF141MP, VRF141. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VRF141MP, VRF141
Manufacturer: Microchip ↗
File Size: 565.88 KB
Datasheet: VRF141-Microchip.pdf
Description: 175MHz RF Power MOSFET
Note: This datasheet PDF includes multiple part numbers: VRF141MP, VRF141.
Please refer to the document for exact specifications by model.

VRF141MP Product details

Features

Improved ruggedness V(BR)DSS = 80 V.
150 W with 22 dB typical gain at 30 MHz, 28 V.
150 W with 13 dB typical gain at 175 MHz, 28 V.
Excellent stability and low IMD.
Common source conﬁguration.
Available in matched pairs (VRF141MP).
30:1 load VSWR capability at speciﬁed operating conditions.
Nitride passivated.
Refractory gold metallization.
High voltage replacement for MRF141.
RoHS compliant © 20.
