2N4429 - NPN SILICON RF POWER TRANSISTOR

2N4429 Description

2N4429 NPN SILICON RF POWER TRANSISTOR .
The ASI 2N4429 is Designed for Class C Amplifier Applications Up to 1,000 MHz. PG = 7.

2N4429 Features

* PG = 7.5 dB Typ. at 1.0 W/1000 MHz
* Emitter Ballasting for Ruggedness
* Omnigold™ Metallization System D C J E F G H K #8-32 UNC MAXIMUM inches / mm I MAXIMUM RATINGS IC VCB PDISS TJ TSTG θJC 1.0 A 45 V 7.0 W @ TC = 25 C -65 to +200 C -65 to +150 C 25 C/W O O O O DIM A

📥 Download Datasheet

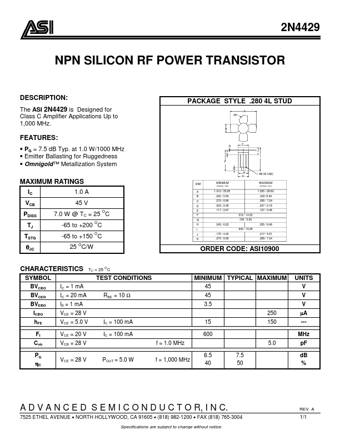

Preview of 2N4429 PDF

Datasheet Details

Part number
2N4429
Manufacturer
Advanced Semiconductor
File Size
14.16 KB
Datasheet
2N4429_AdvancedSemiconductor.pdf
Description
NPN SILICON RF POWER TRANSISTOR
