KV2101-150, Silicon Hyperabrupt Tuning Varactor

KV2101-150 SILICON HYPERABRUPT TUNING VARACTOR PACKAGE STYLE 150 .
The ASI KV2101-150 is a Silicon Hyperabrupt Tuning Varactor Diode Designed for UHF Applications up to 800 MHz.

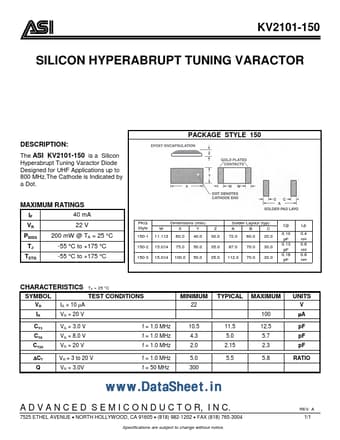

datasheet Preview Page 1 from Datasheet4u.com

KV2101-150_AdvancedSemiconductor.pdf

KV2101-150 Datasheet Preview — Preview of KV2101-150 PDF

Datasheet Details

Part number:

KV2101-150

Manufacturer:

Advanced Semiconductor

File Size:

35.44 KB

Description:

Silicon Hyperabrupt Tuning Varactor

Applications

* up to 800 MHz. The Cathode is Indicated by a Dot. MAXIMUM RATINGS IF VR PDISS TJ TSTG 40 mA 22 V 200 mW @ TA = 25 °C -55 °C to +175 °C -55 °C to +175 °C PKG Style 150-1 150-2 150-3 W 11.1±3 15.0±4 15.0±4 Dimensions (mils) X Y 60.0 75.0 100.0 40.0 50.0 50.0 Z 30.0 35.0 35.0 Solder Layout (typ) A B C
