KV2101A Datasheet - Advanced Semiconductor

KV2101A Silicon Hyperabrupt Tuning Varactor

The ASI KV2101A is a Silicon Hyperabrupt Tuning Varactor Diode Designed for UHF Applications up to 800 MHz.The Cathode is Indicated by a Color Band. MAXIMUM RATINGS IF VR PDISS TJ TSTG 40 mA 22 V 200 mW @ TA = 25 °C -55 °C to +175 °C -55 °C to +175 °C CHARACTERISTICS SYMBOL VR IR CT3 CT8 CT20 ∆ C.

KV2101A_AdvancedSemiconductor.pdf

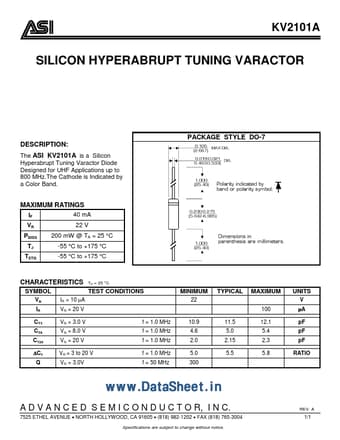

Preview of KV2101A PDF

Datasheet Details

Part number:

KV2101A

Manufacturer:

Advanced Semiconductor

File Size:

18.10 KB

Description:

Silicon hyperabrupt tuning varactor.
