KV2121

(KV2111 - KV2161) VARACTOR DIODES Microwave Hyperabrupt Junction

KV2121 Features

* Available as packaged devices or as chips for hybrid applications

* Octave Tuning Range

* Ultrahigh Q

* Available With 5% CT Tolerance APPLICATIONS Ultrahigh Q and excellent large signal handling capabilities, along with a greater than 4 to 1 capacitance ratio, is obtained by tuni

KV2121 General Description

The KV2100 series of microwave hyperabrupt varactor diodes offers octave tuning through 8 GHz. High reliability passivated construction, insures excellent VCO settling time and post tuning drift characteristics. As with their UHF counterparts, straight-line tuning can be achieved over a mid voltage .

KV2121 Datasheet (95.85 KB)

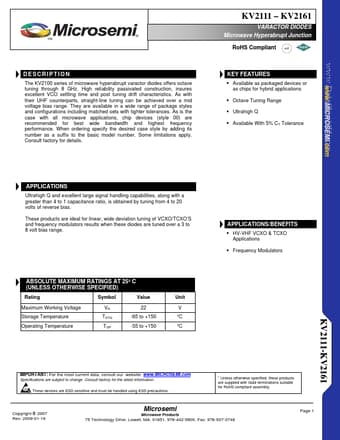

Preview of KV2121 PDF

Datasheet Details

Part number:

KV2121

Manufacturer:

Microsemi ↗ Corporation

File Size:

95.85 KB

Description:

(kv2111 - kv2161) varactor diodes microwave hyperabrupt junction.
