MSC85623 NPN RF TRANSISTOR

Advanced Semiconductor

Description

MSC85623 NPN RF TRANSISTOR .
The ASI MSC85623 is a Silicon NPN Microwave Transistor Supplied in a Common Base Package, Designed for RF Amplifier and Oscillator Applications up to.

📥 Download Datasheet

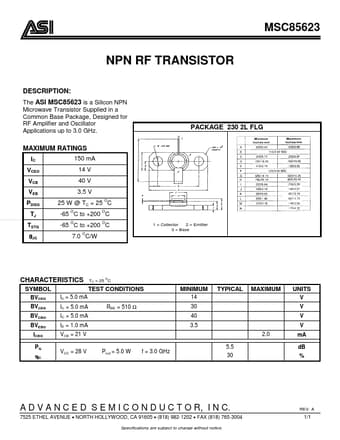

MSC85623 Datasheet Preview — Preview of MSC85623 PDF

Datasheet Specifications

Part number: MSC85623
Manufacturer: Advanced Semiconductor
File Size: 49.44 KB
Datasheet: MSC85623_AdvancedSemiconductor.pdf
Description: NPN RF TRANSISTOR

Applications

* up to 3.0 GHz. PACKAGE 230 2L FLG MAXIMUM RATINGS IC VCEO VCB VEB PDISS TJ www. DataSheet4U. com 150 mA 14 V 40 V 3.5 V 25 W @ TC = 25 C -65 C to +200 C -65 C to +200 C 7.0 C/W O O O O O O TSTG θJC 1 = Collector 2 = Emitter 3 = Base TRANS1.SYM CHARACTERISTICS SYMBOL BVCEO BVCER BVCBO BVEBO ICBO
