SD1006 - NPN SILICON HIGH FREQUENCY TRANSISTOR

SD1006 Description

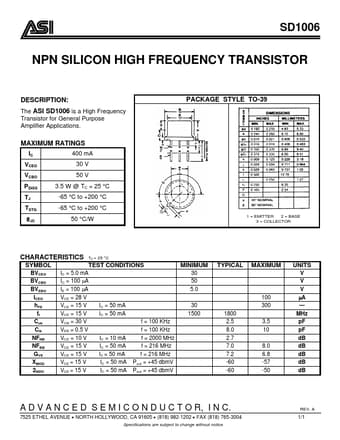

SD1006 NPN SILICON HIGH FREQUENCY TRANSISTOR PACKAGE STYLE TO-39 .
The ASI SD1006 is a High Frequency Transistor for General Purpose Amplifier Applications.

SD1006 Applications

* MAXIMUM RATINGS IC VCEO VCBO PDISS TJ TSTG θJC 400 mA 30 V 50 V 3.5 W @ TC = 25 °C -65 °C to +200 °C -65 °C to +200 °C 50 °C/W 1 = EMITTER 2 = BASE 3 = COLLECTOR NONE CHARACTERISTICS SYMBOL BVCEO BVCBO BVEBO ICEO hFE ft Cob Cib NFNB NFBB GVE XMOD 2NDO TC = 25 °C TEST CONDITIONS IC = 5.0 mA IC
