TRW54601 - NPN SILICON RF POWER TRANSISTOR

General Description

The ASI TRW54601 is Designed for General Purpose Oscillator Applications up to 2.3 GHz.

Key Features

  • Diffused Ballast Resistors.
  • Omnigold™ Metalization System.
  • Common Emitter.

📥 Download Datasheet

Datasheet Details

Part number TRW54601
Manufacturer Advanced Semiconductor
File Size 206.52 KB
Description NPN SILICON RF POWER TRANSISTOR
Datasheet download datasheet TRW54601 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TRW-24L01 2.4G ISM Transceiver WENSHING
TRWL02 Wire Wound Chip Ceramic Inductor Token
TRWL03 Wire Wound Chip Ceramic Inductor Token
TRWL05 Wire Wound Chip Ceramic Inductor Token
TRWL06 Wire Wound Chip Ceramic Inductor Token

Other Datasheets by Advanced Semiconductor

Part Number Description
TRW53601 NPN SILICON RF POWER TRANSISTOR
TRW3005 NPN SILICON RF POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

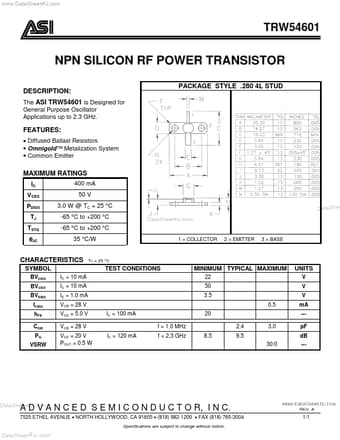

www.DataSheet4U.com TRW54601 NPN SILICON RF POWER TRANSISTOR DESCRIPTION: The ASI TRW54601 is Designed for General Purpose Oscillator Applications up to 2.3 GHz. PACKAGE STYLE .280 4L STUD FEATURES: • Diffused Ballast Resistors • Omnigold™ Metalization System • Common Emitter MAXIMUM RATINGS IC VCES PDISS TJ TSTG θJC 400 mA 50 V 3.0 W @ TC = 25 °C -65 °C to +200 °C -65 °C to +200 °C 35 °C/W 1 = COLLECTOR 2 = EMITTER 3 = BASE DataShee DataSheet4U.com CHARACTERISTICS SYMBOL BVCEO BVCES BVEBO ICBO hFE COB PG VSRW IC = 10 mA IC = 10 mA IE = 1.0 mA VCB = 28 V VCE = 5.0 V VCB = 28 V TC = 25 °C NONETEST CONDITIONS MINIMUM TYPICAL MAXIMUM 22 50 3.5 0.5 UNITS V V V mA --- IC = 100 mA f = 1.0 MHz IC = 120 mA f = 2.3 GHz 20 2.4 8.5 9.5 30:0 3.0 pF dB --- VCE = 20 V POUT = 0.
