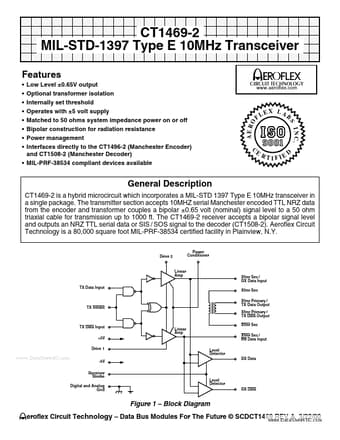

CT1469-2 CT1469-2 MIL-STD-1397 Type E 10MHz Transceiver

CT1469-2 is a hybrid microcircuit which incorporates a MIL-STD 1397 Type E 10MHz transceiver in a single package. The transmitter section accepts 10MHZ serial Manchester encoded TTL NRZ data from the encoder and transformer couples a bipolar ±0.65 volt (nominal) signal level to a 50 ohm triaxial cab.

CT1469-2 Features

* Low Level ±0.65V output Optional transformer isolation Internally set threshold Operates with ±5 volt supply Matched to 50 ohms system impedance power on or off Bipolar construction for radiation resistance Power managem
