CT1775

CT1775 Universal MacAir/1553 Dumb RTU Hybrid

CT1775 Features

* ❑ ❑ CT1775 Replaces DDC BUS-65201 Includes: - Universal Transceiver - Encoder/decoder - Dual Rank I/O Registers - Fail-safe Timer - Clock Oscillator Simple Controls for Single or Dual Redundant Data Bus Configurations Provides Flags for: - Own Address (With Parity) - Mode Code - Broadcast - Time Ou

CT1775 General Description

The CT1775 Universal MACAIR/1553 Dumb Remote Terminal Unit (RTU) consists of a transceiver, and encoder/decoder, control logic, dual rank I/O registers and internal clock oscillator packaged in a 1.6" x 1.9" hermetic hybrid. It provides all the functions required to interface between a MACAIR (sinus.

CT1775 Datasheet (184.04 KB)

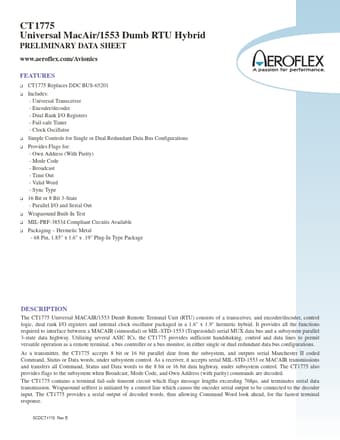

Preview of CT1775 PDF

Datasheet Details

Part number:

CT1775

Manufacturer:

Aeroflex Circuit Technology

File Size:

184.04 KB

Description:

Ct1775 universal macair/1553 dumb rtu hybrid.
