VRG8601 - Dual Adjustable Positive/Negative Voltage Regulators

Aeroflex Circuit Technology

📥 Download Datasheet

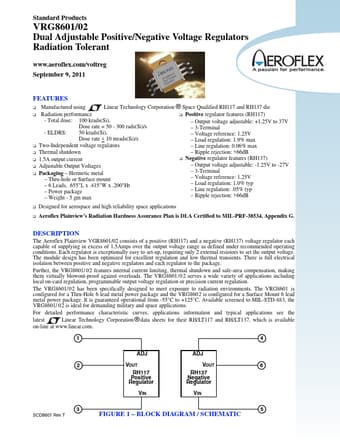

VRG8601 Datasheet Preview — Preview of VRG8601 PDF

Datasheet Details

Part number	VRG8601
Manufacturer	Aeroflex Circuit Technology
File Size	114.77 KB
Description	Dual Adjustable Positive/Negative Voltage Regulators
Datasheet	VRG8601-AeroflexCircuitTechnology.pdf

VRG8601 Product details

Description

The Aeroflex Plainview VGR8601/02 consists of a positive (RH117) and a negative (RH137) voltage regulator each capable of supplying in excess of 1.5Amps over the output voltage range as defined under recommended operating conditions.

Features

❑ Manufactured using Linear Technology Corporation ® Space Qualified RH117 and RH137 die ❑ Radiation performance - Total dose: 100 krads(Si), Dose rate = 50 - 300 rads(Si)/s - ELDRS: 50 krads(Si), Dose rate < 10 mrads(Si)/s ❑ Two-Independent voltage regulators ❑ Thermal shutdown ❑ 1.5A output current ❑ Adjustable Output Voltages ❑ Packaging.
Hermetic metal.
Thru-hole or Surface mount.
6 Leads, .655"L x .415"W x .200"Ht.
Power package.
Weight - 5 gm.
