VRG8609

Dual Adjustable Negative Voltage Regulators

VRG8609 Features

* ❑ Manufactured using Linear Technology Corporation ® Space Qualified RH137 die ❑ Radiation performance ❑ Load regulation: 1.0% max - Total dose: 100 krads(Si), Dose rate = 50 - 300 rads(Si)/s - ELDRS: 50 kreds(Si), Dose rate < 10 mrads(Si)/S ❑ Thermal shutdown ❑ Output voltage adjustable: -1.25

VRG8609 General Description

The Aeroflex Plainview VRG8609/10 consists of two negative (RH137) voltage regulators each capable of supplying in excess of 1.5Amps over the output voltage range as defined under recommended operating conditions. Each regulator is exceptionally easy to set-up, requiring only 2 external resistors t.

VRG8609 Datasheet (110.18 KB)

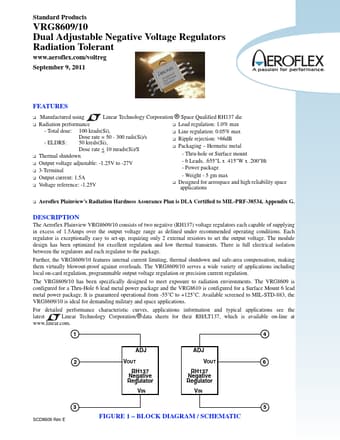

Preview of VRG8609 PDF

Datasheet Details

Part number:

VRG8609

Manufacturer:

Aeroflex Circuit Technology

File Size:

110.18 KB

Description:

Dual adjustable negative voltage regulators.
