UT54ACS132

Radiation-Hardened Quadruple 2-Input NAND Schmitt Triggers

UT54ACS132 Features

* radiation-hardened CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 14-pin DIP - 14-lead flatpack PINOUTS 14-Pin DIP Top View A1 B1 Y1 A2 B2 Y2 VSS 1 2 3 4 5 6 7

UT54ACS132 General Description

The UT54ACS132 and the UT54ACTS132 are 2-input NAND gates with Schmitt Trigger input levels. A high applied on both the inputs forces the output to a low state. The devices are characterized over full military temperature range of -55 C to +125 C. FUNCTION TABLE INPUTS An L L H H Bn L H L H OUTPUT Y.

UT54ACS132 Datasheet (204.90 KB)

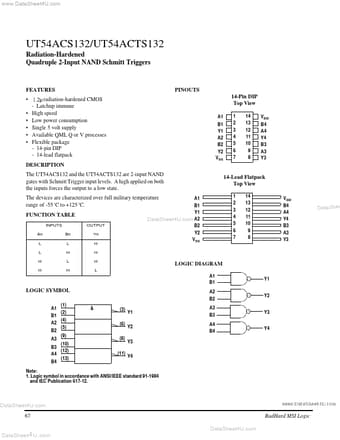

Preview of UT54ACS132 PDF

Datasheet Details

Part number:

UT54ACS132

Manufacturer:

Aeroflex Microelectronic Solutions

File Size:

204.90 KB

Description:

Radiation-hardened quadruple 2-input nand schmitt triggers.
