UT54ACS139

UT54ACS139/UT54ACTS139

UT54ACS139 Features

* PINOUTS 16-Pin DIP Top View radiation-hardened CMOS - Latchup immune

* High speed www.DataSheet4U.com

* Low power consumption

* Single 5 volt supply

* Available QML Q or V processes

* Flexible package - 16-pin DIP - 16-lead flatpack DESCRIPTION The UT54ACS13

UT54ACS139 General Description

The UT54ACS139 and the UT54ACTS139 are designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times. The devices consist of two individual two-line to four-line decoders in a single package. The active-low enable input can be used .

UT54ACS139 Datasheet (70.65 KB)

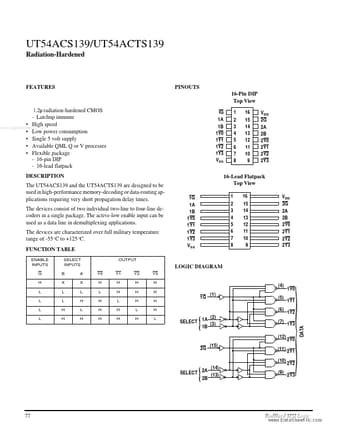

Preview of UT54ACS139 PDF

Datasheet Details

Part number:

UT54ACS139

Manufacturer:

ETC

File Size:

70.65 KB

Description:

Ut54acs139/ut54acts139.
