Hex Inverting Schmitt Triggers

UT54ACS14 Features

* PINOUTS 14-Pin DIP Top View A1 Y1 A2 Y2 A3 Y3 VSS 1 2 3 4 5 6 7 14 13 12 11 10 9 8 VDD A6 Y6 A5 Y5 A4 Y4

* 1.2µ radiation-hardened CMOS (ACTS14) and 0.6µ CRH

* www.DataSheet4U.com

* Low power consumption

* Single 5 volt supply

* Available QML Q or V processe

UT54ACS14 General Description

The UT54ACS14 and the UT54ACTS14 are hex inverters. The circuits perform the Boolean function Y = A. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUT A H L OUTPUT Y L H A1 Y1 A2 Y2 A3 Y3 VSS 14-Lead Flatpack Top View 1 2 3 4 5 6 7 14 13 12 .

UT54ACS14 Datasheet (74.25 KB)

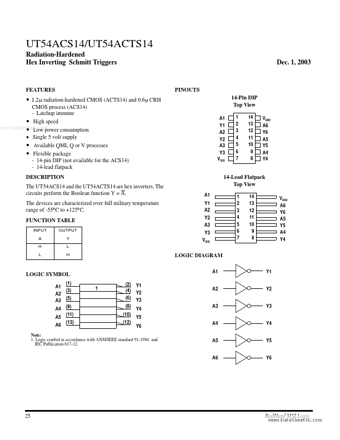

Preview of UT54ACS14 PDF

Datasheet Details

Part number:

UT54ACS14

Manufacturer:

ETC

File Size:

74.25 KB

Description:

Hex inverting schmitt triggers.
