Hex Inverting Schmitt Triggers

UT54ACS14E Features

* m CRH CMOS Process - Latchup immune

* High speed

* Low power consumption

* Wide power supply operating range of 3.0V to 5.5V

* Available QML Q or V processes

* 14-lead flatpack

* UT54ACS14E - SMD 5962-96524

* UT54ACTS14E - SMD 5962-96525 FUNCTION TABLE INPUT

UT54ACS14E General Description

The UT54ACS14E and the UT54ACTS14E are hex inverters with schmitt trigger inputs. The circuits perform the Boolean function Y = A. The devices are characterized over full HiRel temperature range of -55C to +125C. PINOUTS A1 Y1 A2 Y2 A3 Y3 VSS 14-Lead Flatpack Top View 1 14 2 13 3 12 4 11 5 10 69.

UT54ACS14E Datasheet (124.39 KB)

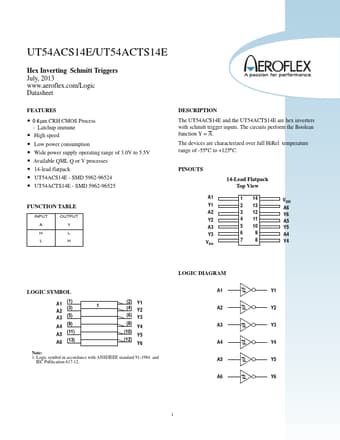

Preview of UT54ACS14E PDF
