UT54ACS04

Radiation-Hardened Hex Inverters

UT54ACS04 Features

* radiation-hardened CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 14-pin DIP - 14-lead flatpack DESCRIPTION The UT54ACS04 and the UT54ACTS04 are hex inverters. The circuits perform the Boolean function Y = A. The devices

UT54ACS04 General Description

The UT54ACS04 and the UT54ACTS04 are hex inverters. The circuits perform the Boolean function Y = A. The devices are characterized over full military temperature range of -55 C to +125 C. FUNCTION TABLE INPUT A H L OUTPUT Y L H PINOUTS 14-Pin DIP Top View A1 Y1 A2 Y2 A3 Y3 VSS 1 2 3 4 5 6 7 14 13 1.

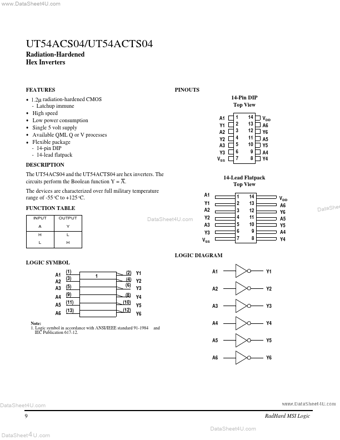

UT54ACS04 Datasheet (197.54 KB)

Preview of UT54ACS04 PDF

Datasheet Details

Part number:

UT54ACS04

Manufacturer:

Aeroflex Microelectronic Solutions

File Size:

197.54 KB

Description:

Radiation-hardened hex inverters.
