UT54ACS02E

Quadruple 2-Input NOR Gate

UT54ACS02E Features

* m CRH CMOS Process - Latchup immune

* High speed

* Low power consumption

* Wide power supply operating range of 3.0V to 5.5V

* Available QML Q or V processes

* 14-lead flatpack

* UT54ACS02E - SMD - 5962-96514

* UT54ACTS02E - SMD - 5962-96515 DESCRIPTION The UT

UT54ACS02E General Description

The UT54ACS02E and UT54ACTS02E are quadruple, twoinput NOR gates. The circuits perform the Boolean functions Y = A + B or Y = A B in positive logic. The devices are characterized over the full HiRel temperature range of -55C to +125C. FUNCTION TABLE INPUTS AB HX XH LL OUTPUT Y L L H PINOUT.

UT54ACS02E Datasheet (123.97 KB)

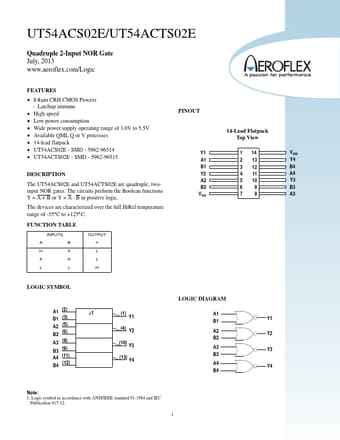

Preview of UT54ACS02E PDF

Datasheet Details

Part number:

UT54ACS02E

Manufacturer:

Aeroflex Circuit Technology

File Size:

123.97 KB

Description:

Quadruple 2-input nor gate.
