UT54ACS00

Quadruple 2-Input NAND Gates

UT54ACS00 Features

* 1.2µ radiation-hardened CMOS - Latchup immune

* High speed

* Low power consumption www.DataSheet4U.com

* Single 5 volt supply

* Available QML Q or V processes

* Flexible package - 14-pin DIP - 14-lead flatpack DESCRIPTION The UT54ACS00 and the UT54AC

UT54ACS00 General Description

The UT54ACS00 and the UT54ACTS00 are quadruple, twoinput NAND gates. The circuits perform the Boolean functions Y = A⋅B or Y = A + B in positive logic. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUTS A H L X B H X L OUTPUT Y L H H PINOUTS.

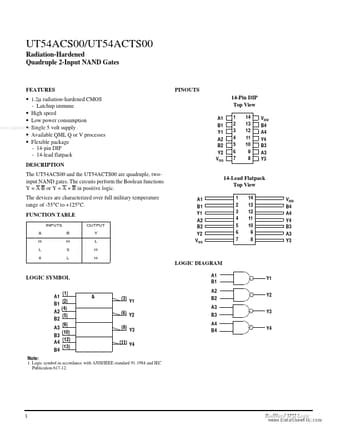

UT54ACS00 Datasheet (1.84 MB)

UT54ACS00 Datasheet Preview — Preview of UT54ACS00 PDF

Datasheet Details

Part number:

UT54ACS00

Manufacturer:

ETC

File Size:

1.84 MB

Description:

Quadruple 2-input nand gates.
