UT54ACS132

Radiation-Hardened Quadruple 2-Input NAND Schmitt Triggers

UT54ACS132 Features

* 1.2µ radiation-hardened CMOS (ACTS 132) and 0.6µ CRH CMOS process (ACS132) - Latchup immune

* High speed www.DataSheet4U.com

* Low power consumption

* Single 5 volt supply

* Available QML Q or V processes

* Flexible package - 14-pin DIP (not availabl

UT54ACS132 General Description

The UT54ACS132 and the UT54ACTS132 are 2-input NAND gates with Schmitt Trigger input levels. A high applied on both the inputs forces the output to a low state. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUTS An L L H H Bn L H L H OUTPUT Y.

UT54ACS132 Datasheet (75.03 KB)

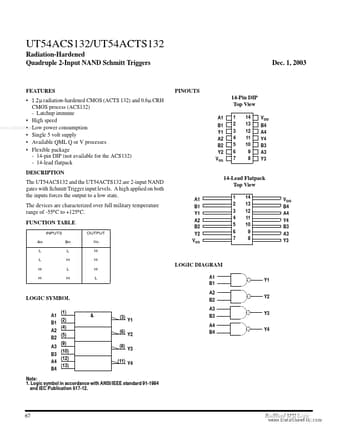

Preview of UT54ACS132 PDF
