UT54ACS02

Quadruple 2-Input NOR Gates

Aeroflex Circuit Technology

UT54ACS02 Features

* 1.2μ CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 14-pin DIP - 14-lead flatpack UT54ACS02 - SMD 5962-96514 UT54ACTS02 - SMD 5962-96515 DESCRIPTION The UT54ACS02 and the UT54ACTS02 are quadruple, twoinp

UT54ACS02 General Description

The UT54ACS02 and the UT54ACTS02 are quadruple, twoinput NOR gates. The circuits perform the Boolean functions Y = A + B or Y = A ⋅ B in positive logic. The devices are characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUTS AB HX XH LL OUTPUT Y L L H LOGIC.

UT54ACS02 Datasheet (221.06 KB)

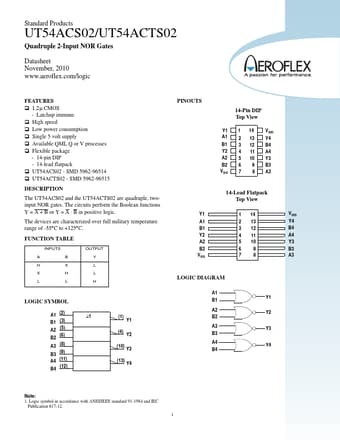

UT54ACS02 Datasheet Preview — Preview of UT54ACS02 PDF

Datasheet Details

Part number:

UT54ACS02

Manufacturer:

Aeroflex Circuit Technology

File Size:

221.06 KB

Description:

Quadruple 2-input nor gates.
