UT54ACS00E

Quadruple 2-Input NAND Gates

Aeroflex Circuit Technology

UT54ACS00E Features

* 0.6μm CRH CMOS process - Latchup immune

* High speed

* Low power consumption

* Wide power supply operating range from 3.0V to 5.5V

* Available QML Q or V processes

* 14-lead flatpack

* UT54ACS00E - SMD 5962-96512 DESCRIPTION The UT54ACS00E is

UT54ACS00E General Description

The UT54ACS00E is a performance and voltage enhanced version of the UT54ACS00 quadruple, two-input NAND gate. The circuit performs the Boolean functions Y = A⋅B or Y = A + B in positive logic. The device is characterized over full military temperature range of -55°C to +125°C. FUNCTION TABLE INPUTS.

UT54ACS00E Datasheet (184.62 KB)

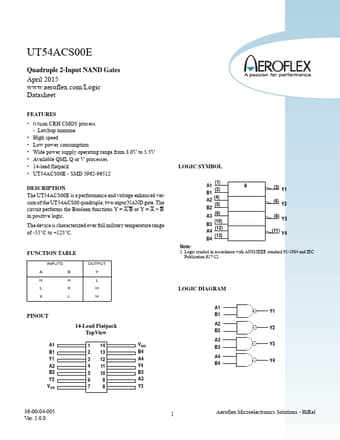

UT54ACS00E Datasheet Preview — Preview of UT54ACS00E PDF

Datasheet Details

Part number:

UT54ACS00E

Manufacturer:

Aeroflex Circuit Technology

File Size:

184.62 KB

Description:

Quadruple 2-input nand gates.
