D418M, Dividers / Combiners / Power

IN-PHASE 4-WAY DIVIDERS/COMBINERS, POWER SMA/TYPE N 0.5-18 GHz GENERAL SPECIFICATIONS Frequency Range: RF Impedance: RF Power: 0.5 to 18.0 GHz 50 Ohm.

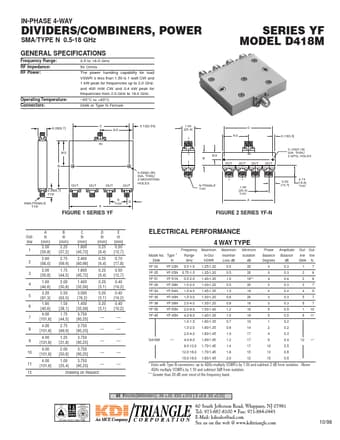

datasheet Preview Page 1 from Datasheet4u.com

D418M_Aeroflex.pdf

D418M Datasheet Preview — Preview of D418M PDF

Datasheet Details

Part number:

D418M

Manufacturer:

Aeroflex

File Size:

196.01 KB

Description:

Dividers / Combiners / Power

Features

* 2,7] .25[6,4] .27[6,86] INPUT J1 KDI 64537 D308MS D/C J2 J3 J4 J5 J6 J7 1.740 [44,2] 2.00 [50,8] .50 [12,7] 1.00[25,4] 1.50[38,1] 2.00

Applications

* SCHEMATIC 2 Way Div 2 Way Div 2 Way Div S J2 S J3 S J4 S J5 MATES WITH SMA MALE CONN (5) PER MIL-C-39012 .29 [7,4] KDI 64537 D317NS S/N D/C RF OUT .56 [14,2] 1.19 [30,2] 1.81 [46,0] 2.44 [62,0] RF OUT 10/98 6 WAY DIVIDERS/COMBINERS, POWER ELECTRICAL SPECIFICATIONS Model: Connectors:
